Home /Products/Home Use Welder/Professional multifunctional hotel CAT welding machine TIG/COLD/PULSE/CLEAN/Au-Ag welder

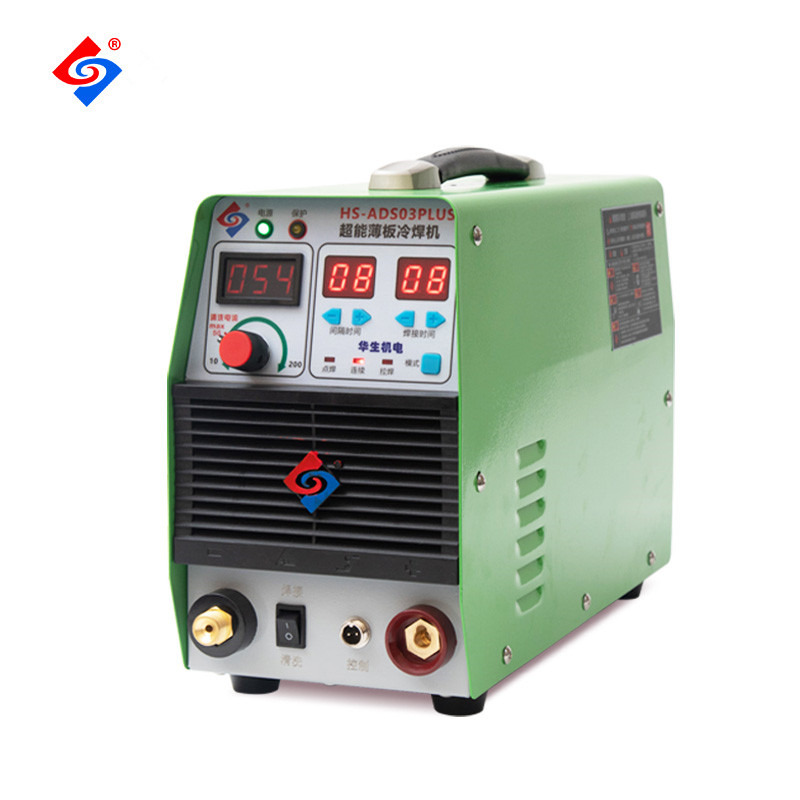

Professional multifunctional hotel CAT welding machine TIG/COLD/PULSE/CLEAN/Au-Ag welder

1 Set
MOQ
$520.00(1 - 4 Sets) $480.00(5 - 9 Sets) $450.00(>=10 Sets)
Price
Professional multifunctional hotel CAT welding machine TIG/COLD/PULSE/CLEAN/Au-Ag welder
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Submerged Arc Welding Equipment
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Arc Current: 10-200A
Pulse Frequency: 1-10HZ
Pilot Arc Current: 1-200A
Rated Duty Cycle: 80%
Motor Type: AC Motor
Dimensions: 370X150X250MM
Usage: Repair Welding
Voltage: AC 220V/230V 50/60 HZ
Power: 3600w
Weight (KG): 7.3 KG
Warranty: 1 Year
Key Selling Points: Competitive Price
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Showroom Location: Turkey, United Kingdom, Viet Nam, Brazil, India, None
Model: HS-ADS03 PLUS
Input Voltage: AC 220V/230V 50/60 HZ
Input Power: 3600W
Welding Current: 10-200A
Control Way: Inverter Control
Suggest Thickness Of Continuous Welding: 0.5-3mm
Suggest Thickness Of Pulse Welding: 1-8mm
Rate Input Power: 4.5KVA
Rate Work Voltage: 18V
After-sales Service Provided: Online Support, Video Technical Support
After Warranty Service: Video Technical Support, Online Support
Local Service Location: Philippines, Brazil, India, Ukraine
Certification: ISO9001 CCC CE
Basic Infomation
Certification: ISO9001 CCC CE
Model Number: HS-ADS03 PLUS
Payment & Shipping Terms
Packaging Details: carton box
Product Description
HS-ADS03 can release the electrical energy stored in the capacitor between the tungsten electrode and the workpiece in the form of a pulsed arc in an instant. The arc with a higher temperature causes the workpiece composed of metal materials and the welding wire to quickly melt and fuse together to achieve the purpose of welding repair .

Welding Repair materials:

In addition to materials with very low melting points such as zinc and tin and cemented carbide, various metal materials (including copper and aluminum) Pieces can be repaired.

Weldable items:

1. Local wear and tear caused by equipment and mold during use. 2. Processing defects in the manufacturing process, such as trachoma pores, excessive size, corner damage, insufficient argon welding, etc. 3. The rust spots and other depressions in the cavity.
Welding Skills:Welding can be directly without gaps, if there is gaps need to add rod

The key to self-melting

The tungsten is aimed at the gap, and the arc is aligned with the gap. If the welding point is not formed, it means that the tungsten needle is far away from the workpiece. You can put the tungsten needle closer.Don't be afraid of the tungsten needle sticking to the workpiece

Tips for adding welding wire

The tungsten pin is placed in front of the welding wire. After the first point is set, each subsequent point is placed at the tail of the previous point (in front of the tungsten )
Model
HS-ADS03
Output Power
3600W
Output Current
10-200A
Input Voltage
AC 220V 50/60HZ
Suggest welding thickness of pulse welding
0.5-3mm
Suggest welding thickness of continuous welding
1-8mm
Machine size
370x150x250MM
Machine Weight
7.3KG
Company Introduction
Anhui Huasheng Mechanical Electrical Group Co., Ltd. is located in Jingxian, a beautiful hometown of rice paper, covering an area of about 17,000 square meters with a registered capital of 10 million yuan. Mainly committed to the research and development,production and sales of micro motors, cold welding technology and related products, and customized welding automation solutions for customers. Products are widely used in mold, casting, electrical appliances, medical, automotive, construction and other industries, involving a wide range of fields, the products are exported to home and abroad. The company further expands the market and improves the after-sales service system. It has established branches in Shanghai, Changzhou, Zhengzhou, Guangdong, Shandong and other places, serving customers with a sincere attitude, standardized management, and high-quality products. Welding expert!
FAQ
Q: What is the difference between cold welding machine and argon arc welding?
A: The cold welding machine is a high-frequency pulse, and it is instantly discharged. The high-energy power stored in the internal capacitor is discharged in about 10 milliseconds, and no heat is accumulated after welding, so it is called a cold welding machine. Argon arc welding is continuous heating, the heat accumulation is too high, the material will be deformed and discolored, and the pulse function is used in time.Due to its long discharge time, about a few hundred milliseconds, it still cannot reduce the heat.
Q: What is the principle of cold welding machine?
A: The cold welding machine is a high-frequency pulse, and it is instantly discharged. The high-energy power stored in the internal capacitor is discharged in about 10 milliseconds, and no heat is accumulated after welding, so it is called a cold welding machine.
Q: Is the argon consumption much?
A: It's about one third of argon arc welding.
